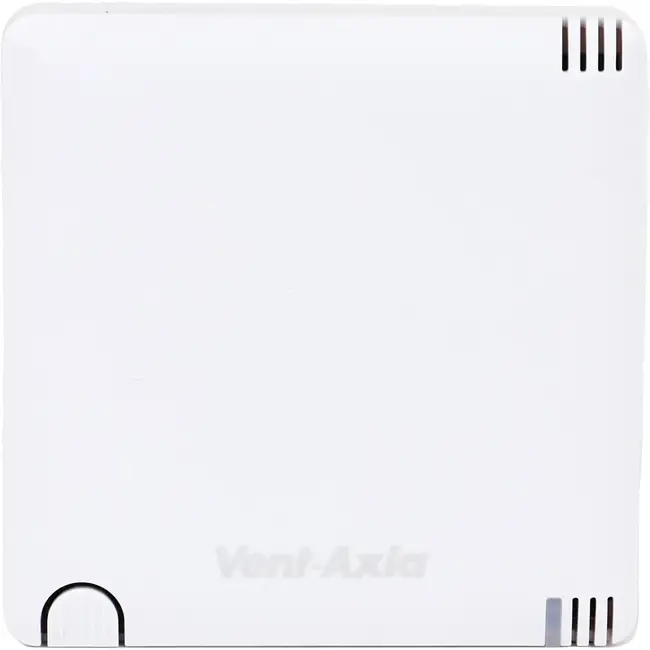

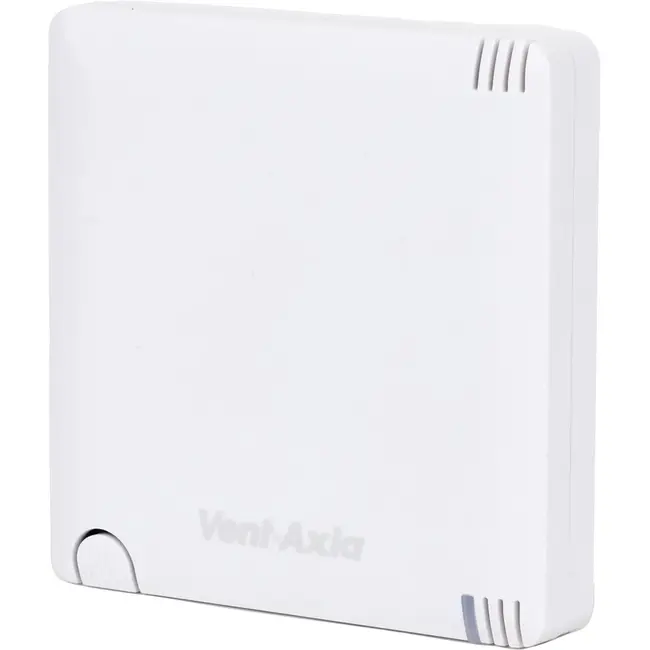

Denna Vent-Axia Multihome mäter CO2-nivån, fuktnivån och temperaturen i ditt vardagsrum, kontor eller annan lokal. Sensorn är en del av Vent-Axia Multihome. Vent-Axias CO₂ styrsensor kopplas trådlöst till enheten men kräver alltid 230V strömförsörjning för att fungera.\r\n mekaniska ventilations enheter.
| Varumärke: | Vent-Axia |
| Kategori | Vent-Axia delar och tillbehör |
| GTIN | 5015135965570 |
| Tillverkarens artikelnummer | 8000001180 |
| Artikelnummer | 19120534 |
| Kategori kod | 203 |
| Scope of application | Room |
| With mounting material | Nej |
| Suitable for wall mounting | Ja |
| Suitable for ceiling mounting | Nej |
| Suitable for duct mounting | Nej |
| Suitable for tube mounting | Nej |
| Suitable for air | Ja |
| Suitable for liquids | Nej |
| Suitable for gases | Nej |
| With housing | Ja |
| Cover attachment | Snapped on |
| Sensor element inside housing | Ja |
| Sensor element outside housing | Nej |
| Fixed cable to sensor | Nej |
| Technology | NDIR |
| Active temperature measurement | Ja |
| Passive temperature measurement | Nej |
| Average temperature measuring | Nej |
| Number of measuring points | 1 |
| Measurement of CO2 | Ja |
| Measurement of VOC | Nej |
| Measurement of relative air humidity | Ja |
| Measurement of absolute air humidity | Nej |
| Enthalpy measurement | Nej |
| Measurement of dewpoint | Nej |
| Particulate matter measurement (PM) | Nej |
| CO2 measuring range (min) | 400 ppm |
| CO2 measuring range (max) | 10000 ppm |
| Temperature measuring range (min) | 7 °C |
| Temperature measuring range (max) | 37 °C |
| Measuring range relative air humidity (min) | 20 % |
| Measuring range relative air humidity (max) | 90 % |
| Offset setting possible | Nej |
| Trend representation | Nej |
| Error registration possible | Nej |
| Potentiometer with adjustment knob | Nej |
| Supporting protocol for BACnet | Nej |
| Supporting protocol for Modbus | Ja |
| Supporting protocol for MP (multi point) | Nej |
| Supporting protocol for KNX | Nej |
| LoRa technology | Nej |
| NFC (Near Field Communication) | Nej |
| Bluetooth | Nej |
| Wi-Fi-compatible | Nej |
| Standby push button | Nej |
| Wireless | Ja |
| With display | Nej |
| Type of display | Other |
| Type of power supply | Power cord |
| Type of electric connection | Screw connection |
| Rated supply voltage AC (min) | 230 V |
| Rated supply voltage AC (max) | 230 V |
| With reverse polarity protection | Ja |
| Number of output signals | 3 |
| Number of output ranges 0 V ... 5 V | 1 |
| Explosion-proof | Nej |
| Degree of protection (IP) | IP31 |
| Housing height | 90 mm |
| Housing width | 90 mm |
| Housing depth | 38 mm |
| Housing colour | White |
| Compatible with Apple HomeKit | Nej |
| Compatible with Google Assistant | Nej |
| Compatible with Amazon Alexa | Nej |
| IFTTT support available | Nej |
